Cropping3D

Description

Setup and add the cropping 3D layer into the model during the definition graph step. Type : polymorphic.



Input parameters



Graph in : model architecture.

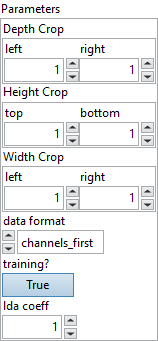

parameters : layer parameters.

depth_crop : cluster, interpreted as (left_crop,ย right_crop).
Default value “(1,1)”.
ย height_crop :ย cluster, interpreted as (top_crop,ย bottom_crop).
Default value โ€œ(1,1)โ€.
ย width_crop :ย cluster, interpreted as (left_crop,ย right_crop).
Default value โ€œ(1,1)โ€.
ย data_format :ย enum, one ofย channels_lastย orย channels_firstย (default) . The ordering of the dimensions in the inputs.ย channel_lastย corresponds to inputs with shapeย (batch, steps, features)ย whileย channels_firstย corresponds to inputs with shapeย (batch, features, steps).
Default value โ€œchannels_firstโ€.
training?ย : boolean, whether the layer is in training mode (can store data for backward).
Default value “True”.
lda_coeff : float, defines the coefficient by which the loss derivative will be multiplied before being sent to the previous layer (since during the backward run we go backwards).
Default value “1”.

in/out param :

input_shape : integer array, shape (not including the batch axis). NB : To be used only if it is the first layer of the model.
ย output_behaviorย :ย enum, setup if the layer is an output layer.
Default โ€œNot Outputโ€โ€‹โ€‹.

name (optional) : string, name of the layer.



Output parameters



Graph out : model architecture.

Dimension

Input shape

5D tensor with shape :

  • If data_format is โ€œchannels_lastโ€ : (batch_size, first_axis_to_crop, second_axis_to_crop, third_axis_to_crop, depth)
  • If data_format is โ€œchannels_firstโ€ :ย (batch_size, depth, first_axis_to_crop, second_axis_to_crop, third_axis_to_crop)

Output shape

5D tensor with shape :

  • If data_format is โ€œchannels_lastโ€ : (batch_size, first_cropped_axis, second_cropped_axis, third_cropped_axis, depth)
  • If data_format is โ€œchannels_firstโ€ :ย (batch_size, depth, first_cropped_axis, second_cropped_axis, third_cropped_axis)

Example

All these exemples are snippets PNG, you can drop these Snippet onto the block diagram and get the depicted code added to your VI (Do not forget to install HAIBAL library to run it).

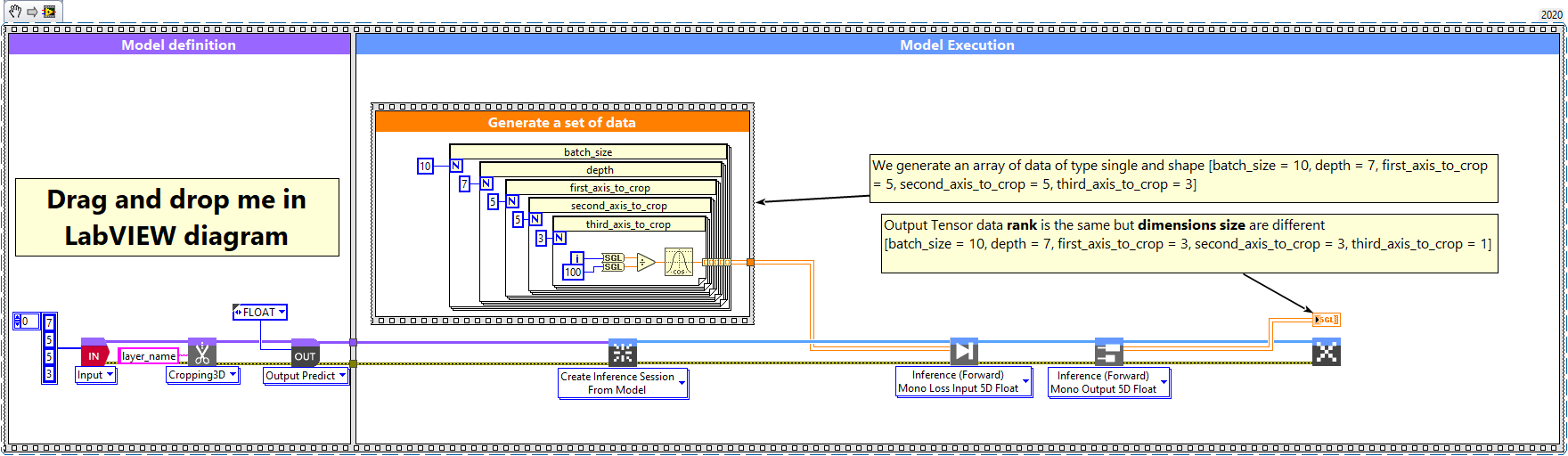

Crooping3D layer with explicit input layer

1 โ€“ Generate a set of data

We generate an array of data of type single and shape [batch_size = 10, depth = 7, first_axis_to_crop = 5, second_axis_to_crop = 5, third_axis_to_crop = 3].

2 โ€“ Define graph

First, we define the first layer of the graph which is an Input layer (explicit input layer method). This layer is setup as an input array shaped [depth = 7, first_axis_to_crop = 5, second_axis_to_crop = 5, third_axis_to_crop = 3].
Then we add to the graph the Cropping3D layer.

3 โ€“ Run graph

We call the forward method and retrieve the result with the โ€œPrediction 5Dโ€ method.
This method returns two variables, the first one is the layer information (cluster composed of the layer name, the graph index and the shape of the output layer) and the second one is the prediction with a shape of [batch_size, depth, first_cropped_axis, second_cropped_axis, third_cropped_axis].



Crooping3D layer with implicit input layer

1 โ€“ Generate a set of data

We generate an array of data of type single and shape [batch_size = 10, depth = 7, first_axis_to_crop = 5, second_axis_to_crop = 5, third_axis_to_crop = 3].

2 โ€“ Define graph

First, we define the Cropping3D layer as the input layer of the graph (implicit input layer method). To do this, we send in the โ€œinput_shapeโ€ variable of the โ€œin/out paramโ€ cluster an array of shape [depth = 7, first_axis_to_crop = 5, second_axis_to_crop = 5, third_axis_to_crop = 3].
An input layer will be implicitly created and the name of this input layer will be the same name as its parent prefixed with โ€œinput_โ€.
Then we add to the graph the Cropping3D layer.

3 โ€“ Run graph

We call the forward method and retrieve the result with the โ€œPrediction 5Dโ€ method.
This method returns two variables, the first one is the layer information (cluster composed of the layer name, the graph index and the shape of the output layer) and the second one is the prediction with a shape of [batch_size, depth, first_cropped_axis, second_cropped_axis, third_cropped_axis].

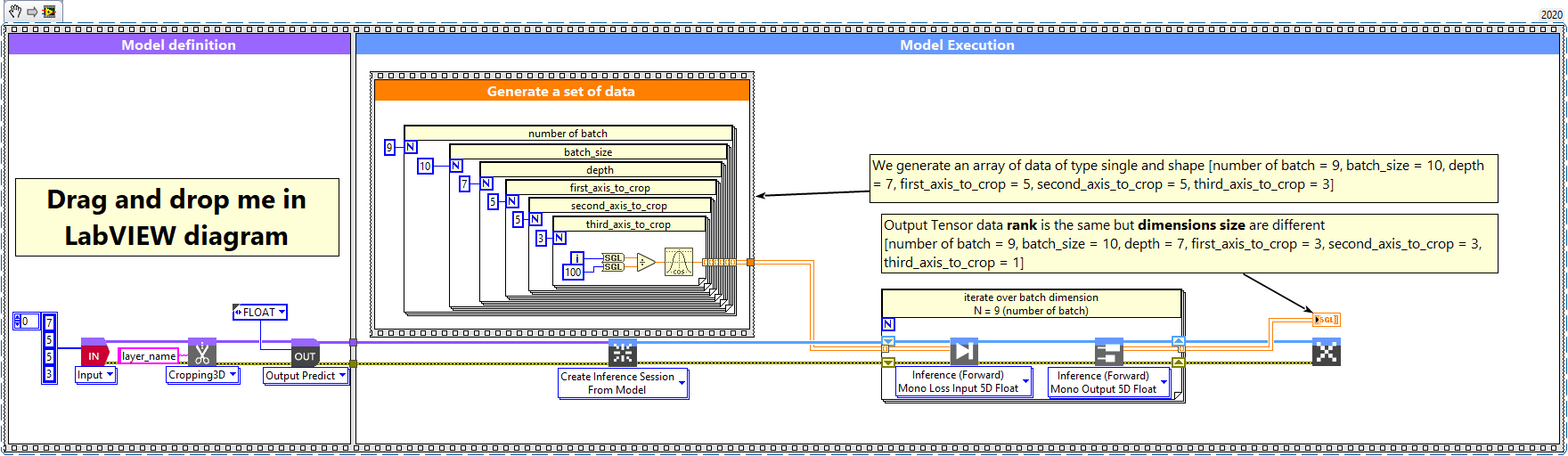

Cropping3D layer, batch and dimension

1 โ€“ Generate a set of data

We generate an array of data of type single and shape [number of batch = 9, batch_size = 10, depth = 7, first_axis_to_crop = 5, second_axis_to_crop = 5, third_axis_to_crop = 3].

2 โ€“ Define graph

First, we define the first layer of the graph which is an Input layer (explicit input layer method). This layer is setup as an input array shaped [depth = 7, first_axis_to_crop = 5, second_axis_to_crop = 5, third_axis_to_crop = 3].
Then we add to the graph the Cropping3D layer.

3 โ€“ Run graph

We call the forward method and retrieve the result with the โ€œPrediction 5Dโ€ method.
This method returns two variables, the first one is the layer information (cluster composed of the layer name, the graph index and the shape of the output layer) and the second one is the prediction with a shape of [batch_size, depth, first_cropped_axis, second_cropped_axis, third_cropped_axis].
