AvgPool1D

Description

Setup and add the average pooling 1D layer into the model during the definition graph step. Type : polymorphic.



Input parameters



Graph in : model architecture.

parameters : layer parameters.

size : integer, size of the average pooling windows.
Default value “2”.
stride : integer, factor by which to downscale.
Default value “0”.
padding : boolean, “valid“or “same“. “valid” means no padding. “same” results in padding evenly to the left/right or up/down of the input such that output has the same height/width dimension as the input.
Default value “False”.
data_format : enum, one of channels_last or channels_first (default) . The ordering of the dimensions in the inputs. channel_last corresponds to inputs with shape (batch, steps, features) while channels_first corresponds to inputs with shape (batch, features, steps).
Default value “channels_first”.
training? : boolean, whether the layer is in training mode (can store data for backward).
Default value “True”.
lda_coeff : float, defines the coefficient by which the loss derivative will be multiplied before being sent to the previous layer (since during the backward run we go backwards).
Default value “1”.

 in/out param :

 input_shape : integer array, shape (not including the batch axis). NB : To be used only if it is the first layer of the model.
 output_behavior : enum, setup if the layer is an output layer.
Default “Not Output”​.

name (optional) : string, name of the layer.



Output parameters



Graph out : model architecture.

Dimension

Input shape

3D tensor with shape

  • If data_format = ‘channels_last’ : (batch_size, steps, features).
  • If data_format = ‘channels_first’ : (batch_size, features, steps).

Output shape

3D tensor with shape

  • If data_format = ‘channels_last’ : (batch_size, downsampled_steps, features).
  • If data_format = ‘channels_first’ : (batch_size, features, downsampled_steps).

Example

All these exemples are snippets PNG, you can drop these Snippet onto the block diagram and get the depicted code added to your VI (Do not forget to install HAIBAL library to run it).

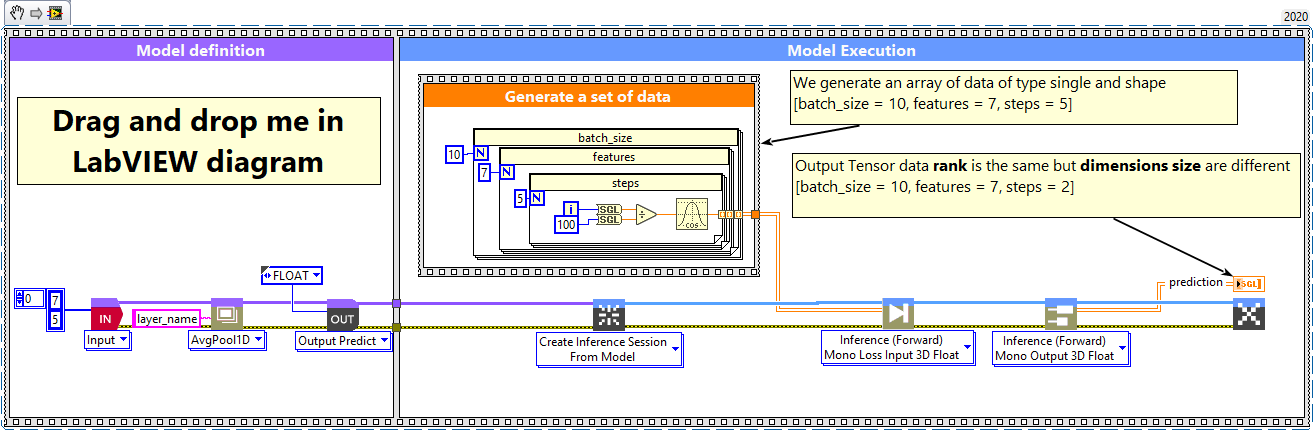

AvgPool1D layer

1 – Generate a set of data

We generate an array of data of type single and shape [batch_size = 10, features = 7, steps = 5].

2 – Define graph

First, we define the first layer of the graph which is an Input layer (explicit input layer method). This layer is setup as an input array shaped [features = 7, steps = 5].
Then we add to the graph the AvgPool1D layer.

3 – Run graph

We call the forward method and retrieve the result with the “Prediction 3D” method.
This method returns two variables, the first one is the layer information (cluster composed of the layer name, the graph index and the shape of the output layer) and the second one is the prediction with a shape of [batch_size, features, steps].

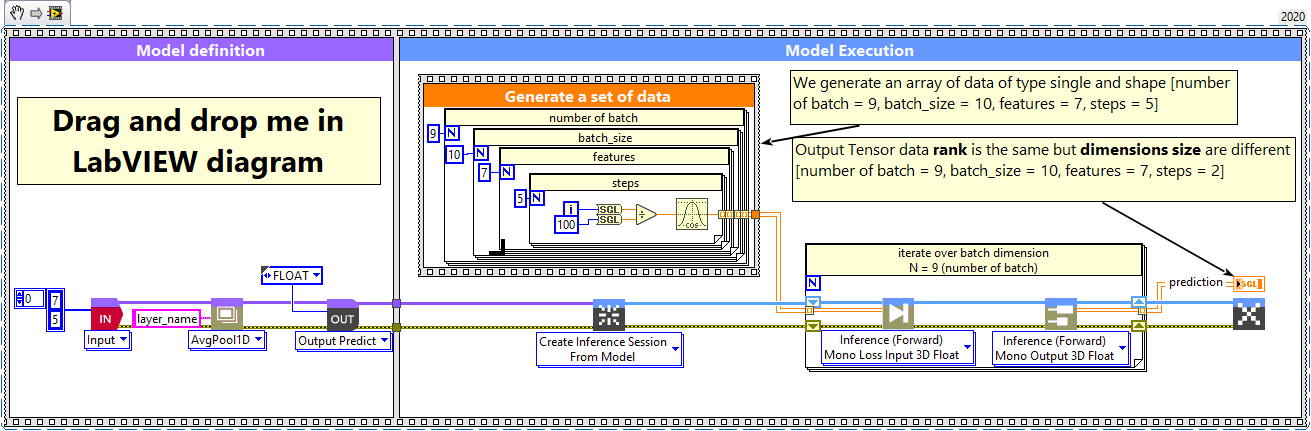

AvgPool1D layer, batch and dimension

1 – Generate a set of data

We generate an array of data of type single and shape [number of batch = 9, batch_size = 10, features = 7, steps = 5]

2 – Define graph

First, we define the first layer of the graph which is an Input layer (explicit input layer method). This layer is setup as an input array shaped [features = 7, steps = 5].
Then we add to the graph the AvgPool1D layer.

3 – Run graph

We call the forward method and retrieve the result with the “Prediction 3D” method.
This method returns two variables, the first one is the layer information (cluster composed of the layer name, the graph index and the shape of the output layer) and the second one is the prediction with a shape of [batch_size, features, steps].
