FusedConv

Description

The fused convolution operator schema is the same as Conv besides it includes an attribute activation.



Input parameters



specified_outputs_name : array, this parameter lets you manually assign custom names to the output tensors of a node.

 Graphs in : cluster, ONNX model architecture.

X (heterogeneous) – T : object,
W (heterogeneous) – T : object,
B (optional, heterogeneous) – T : object,
Z (optional, heterogeneous) – T : object,

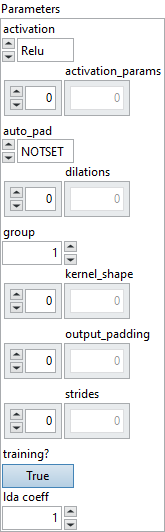

 Parameters : cluster,

 training? : boolean, whether the layer is in training mode (can store data for backward).
Default value “True”.
 lda coeff : float, defines the coefficient by which the loss derivative will be multiplied before being sent to the previous layer (since during the backward run we go backwards).
Default value “1”.

 name (optional) : string, name of the node.

Output parameters



 Y (heterogeneous) – T : object,

Type Constraints

T in (tensor(float), tensor(float16), tensor(double)) : Constrain input and output types to float tensors.

Example

All these exemples are snippets PNG, you can drop these Snippet onto the block diagram and get the depicted code added to your VI (Do not forget to install Deep Learning library to run it).
